8 Minute Read

This tutorial will introduce you to the fundamentals of the Solace API by connecting a client, adding a topic subscription and sending a message matching this topic subscription. This forms the basis for any publish / subscribe message exchange.


This tutorial assumes the following:

  • You are familiar with Solace core concepts.
  • You have access to Solace messaging with the following configuration details:

    • Connectivity information for a Solace message-VPN
    • Enabled client username and password

One simple way to get access to Solace messaging quickly is to create a messaging service in Solace Cloud as outlined here. You can find other ways to get access to Solace messaging below.


The goal of this tutorial is to demonstrate the most basic messaging interaction using Solace. This tutorial will show you:

  1. How to build and send a message on a topic
  2. How to subscribe to a topic and receive a message

Get Solace Messaging

This tutorial requires access Solace PubSub+ messaging and requires that you know several connectivity properties about your Solace messaging. Specifically you need to know the following:

Resources Value Description
Host String This is the address clients use when connecting to the PubSub+ messaging to send and receive messages. (Format: DNS_NAME:Port or IP:Port)
Message VPN String The PubSub+ message router Message VPN that this client should connect to.
Client Username String The client username. (See Notes below)
Client Password String The client password. (See Notes below)

There are several ways you can get access to PubSub+ Messaging and find these required properties.

Option 1: Use PubSub+ Cloud

  • Follow these instructions to quickly spin up a cloud-based PubSub+ messaging service for your applications.
  • The messaging connectivity information is found in the service details in the connectivity tab (shown below). You will need:

    • Host:Port (use the SMF URI)
    • Message VPN
    • Client Username
    • Client Password
Screenshot: Messaging Connectivity Information

Option 2: Start a PubSub+ Software

  • Follow these instructions to start the PubSub+ Software in leading Clouds, Container Platforms or Hypervisors. The tutorials outline where to download and how to install the PubSub+ Software.

  • The messaging connectivity information are the following:

    • Host: <public_ip> (IP address assigned to the VMR in tutorial instructions)

    • Message VPN: default

    • Client Username: sampleUser (can be any value)

    • Client Password: samplePassword (can be any value)

      Note: By default, the PubSub+ Software "default" message VPN has authentication disabled.

Option 3: Get access to a PubSub+ Appliance

  • Contact your PubSub+ appliance administrators and obtain the following:

    • A PubSub+ Message-VPN where you can produce and consume direct and persistent messages
    • The host name or IP address of the Solace appliance hosting your Message-VPN
    • A username and password to access the Solace appliance

Obtaining the Solace PubSub+ API

The repository where this tutorial reside already comes with C API library version However, you should always check for any newer version for download here. The C API is distributed as a gzipped tar file for all supported platform. To update to a newer version of the API, please ensure that the existing core library components are appropriately replaced by the newer components.

Connecting to the Solace message router

In order to send or receive messages, an application must connect a Solace session. The Solace session is the basis for all client communication with the Solace message router.

In the Solace messaging API for Java (JCSMP), Solace sessions are created from the JCSMP factory using a set of properties.

final JCSMPProperties properties = new JCSMPProperties();
properties.setProperty(JCSMPProperties.HOST, args[0]);
properties.setProperty(JCSMPProperties.USERNAME, args[1].split("@")[0]);
properties.setProperty(JCSMPProperties.VPN_NAME,  args[1].split("@")[1]);
if (args.length > 2) {
    properties.setProperty(JCSMPProperties.PASSWORD, args[2]);
final JCSMPSession session = JCSMPFactory.onlyInstance().createSession(properties);


At this point your client is connected to the Solace message router. You can use PubSub+ Manager to view the client connection and related details.

Receiving a message

This tutorial uses “Direct” messages which are at most once delivery messages. So first, let’s express interest in the messages by subscribing to a Solace topic. Then you can look at publishing a matching message and see it received.

With a session connected in the previous step, the next step is to create a message consumer. Message consumers enable the asynchronous receipt of messages through callbacks. These callbacks are defined in JCSMP by the XMLMessageListener interface.

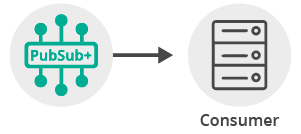

Diagram: Receiving a Message

final CountDownLatch latch = new CountDownLatch(1);

final XMLMessageConsumer cons = session.getMessageConsumer(new XMLMessageListener() {

    public void onReceive(BytesXMLMessage msg) {
        if (msg instanceof TextMessage) {
            System.out.printf("TextMessage received: '%s'%n",
        } else {
            System.out.println("Message received.");
        System.out.printf("Message Dump:%n%s%n",msg.dump());
        latch.countDown();  // unblock main thread

    public void onException(JCSMPException e) {
        System.out.printf("Consumer received exception: %s%n",e);
        latch.countDown();  // unblock main thread

The message consumer code uses a countdown latch in this hello world example to block the consumer thread until a single message has been received.

Then you must subscribe to a topic in order to express interest in receiving messages. This tutorial uses the topic tutorial/topic.

final Topic topic = JCSMPFactory.onlyInstance().createTopic("tutorial/topic");

Then after the subscription is added, the consumer is started. At this point the consumer is ready to receive messages.

try {
    latch.await(); // block here until message received, and latch will flip
} catch (InterruptedException e) {
    System.out.println("I was awoken while waiting");

Sending a message

Now it is time to send a message to the waiting consumer.

Diagram: Sending a Message

Establishing the publisher flow

In JCSMP, a message producer is required for sending messages to a Solace message router. Message Producers implement either the JCSMPStreamingPublishEventHandler or the JCSMPStreamingPublishCorrelatingEventHandler. The JCSMPStreamingPublishEventHandler is the simplest and is sufficient for sending direct messages to a Solace message router.

XMLMessageProducer prod = session.getMessageProducer(new JCSMPStreamingPublishEventHandler() {

    public void responseReceived(String messageID) {
        System.out.println("Producer received response for msg: " + messageID);

    public void handleError(String messageID, JCSMPException e, long timestamp) {
        System.out.printf("Producer received error for msg: %s@%s - %s%n",

The above code will print out any callbacks received from the Solace API by the application.

Creating and sending the message

To send a message, you must create a message and a topic. Both of these are created from the JCSMPFactory. This tutorial will send a Solace Text message with contents “Hello world!”.

final Topic topic = JCSMPFactory.onlyInstance().createTopic("tutorial/topic");
TextMessage msg = JCSMPFactory.onlyInstance().createMessage(TextMessage.class);
final String text = "Hello world!";

At this point the producer has sent a message to the Solace message router and your waiting consumer will have received the message and printed its contents to the screen.


The full source code for this example is available in GitHub. If you combine the example source code shown above results in the following source:

Getting the Source

This tutorial is available in GitHub. To get started, clone the GitHub repository containing the Solace samples.

git clone
cd solace-samples-java-jcsmp


The build instructions in this tutorial assume you are using a Linux shell. If your environment differs, adapt the instructions.

Building these examples is simple. You can simply build the project using Gradle.

./gradlew assemble

This builds all of the Java Getting Started Samples with OS specific launch scripts. The files are staged in the build/staged directory.

Running the Sample

If you start the TopicSubscriber, with the required arguments of your Solace messaging, it will connect and wait for a message.

$ ./build/staged/bin/topicSubscriber <host:port> <client-username>@<message-vpn> [client-password]
TopicSubscriber initializing...
Connected. Awaiting message...

Then you can send a message using the TopicPublisher with the same arguments. If successful, the output for the producer will look like the following:

$ ./build/staged/bin/topicPublisher <host:port> <client-username>@<message-vpn> [client-password]
Topic Publisher initializing...
Connected. About to send message 'Hello world!' to topic 'tutorial/topic'...
Message sent. Exiting.

With the message delivered the subscriber output will look like the following:

Received message:
Destination:         Topic 'tutorial/topic'
Class Of Service:    COS_1
DeliveryMode:        DIRECT
Binary Attachment:   len=12
48 65 6c 6c 6f 20 77 6f 72 6c 64 21           Hello world!

The received message is printed to the screen. The TextMessage contents was “Hello world!” as expected and the message dump contains extra information about the Solace message that was received.

You have now successfully connected a client, subscribed to a topic and exchanged messages using this topic.
